The Joyetech Espion Mod or Joyetech Espion Kit features a business-like appearance, a large 1.45-inch TFT screen, user-friendliness, three adjustment buttons for easy menu navigation, dual 18650 batteries, 200 watts of output, and a wide range of temperature control modes. It is available in black, blue, or gunmetal. This item is outdated, so please check newer 200-watt box mods or mods & kits from all brands.
Overview

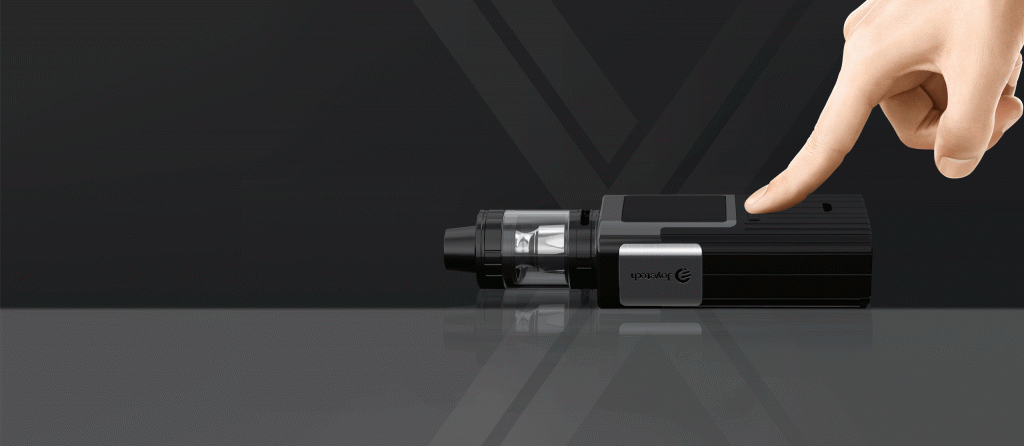

The mod is tall for a dual cell-powered device with measurements of 43mm x 28mm x 113mm. The appearance looks business-like, unique in the vape industry, and sets it apart from the crowd. The centerpiece of this mod is the front-located full-color TFT screen that has a resolution of 240 x 320 dpi. The user interface looks amazing, with clear indicators for date/time, two battery bars, current power/temperature, voltage, coil resistance, and amperage. The settings menu allows for easily changing modes, setting color themes (6 options), changing settings, and getting mod info. Underneath the screen, you will see three adjustment buttons, two of which are up/down and an additional third one with which you can select items for easier menu navigation. The fire button on the side is quite large and rectangular-shaped. At the top, you will find a centered 510 connection bezel compatible with atomizers up to 28mm in diameter and a 510 length ranging from 4mm to 5mm.
The Espion Box Mod utilizes dual replaceable 18650 batteries that can be recharged thanks to an onboard charging system via the micro USB port. The charging setup supports 2 amp quick charging and is balanced to ensure both batteries are always equally charged.
Available operating modes on the Espion are power mode, real-time clock mode, temperature control (with nickel, titanium, and stainless steel), and TCR mode. In power mode, the device can achieve 200 watts of output with atomizers down to 0.1ohm of resistance. The highest temperature output with TCR or any of the three variable temperature modes is 600 degrees Fahrenheit with builds/tanks with a resistance of 0.05ohm or higher. The mod also uses a brand-new buck-boost system that is said to provide steady power output.
Features & Specifications
- Dimensions: 43mm x 28mm x 113mm
- Business like appearance
- Colors: gunmetal, black, blue
- 1.45-inch color TFT screen
- Screen resolution: 240 x 320dpi

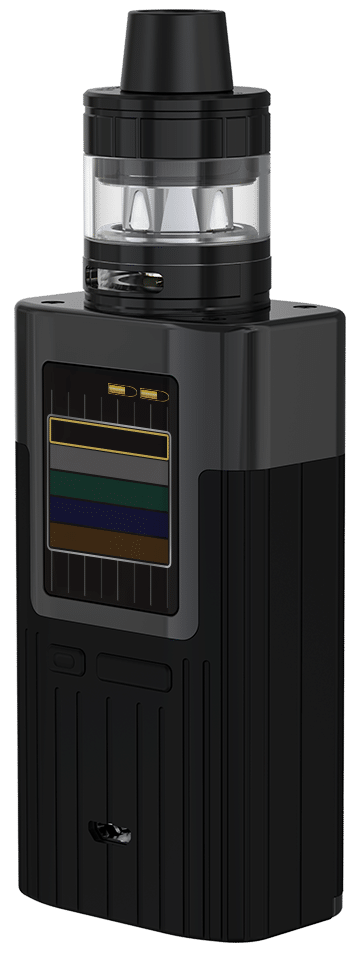

- Change colors to 5 different themes
- The third “function” is to make selections for easy menu navigation
- Large rectangular fire button with Joyetech logo
- 510 atomizer bezel
- Compatible with atomizers with 28mm diameter
- Pin depth: 4.0mm to 5.5mm
- Operating modes: Power/RTC/TC(Ni, Ti, SS316)/TCR modes
- Buck-boost technology for consistent output
- Power mode range: 1W to 200W
- Temperature range：200℉ to 600℉ or 100℃ to 315℃
- Max output voltage: 9.0V
- Resistance range power/variable temp：0.05Ω to 1.5Ω/0.05Ω to 1.5Ω
- Uses dual 18650 batteries
- Fast 2A micro USB balanced charging system
