Here are cheap deals to buy the Volcano Lavabox M DNA 75 Box Mod. It is the compact version of Volcano’s regular Lavabox. It features a portable, lightweight design, effortless battery installation, a unique appearance, and an Evolv DNA 75 chipset with variable wattage, temperature control, TCR, and e-Scribe software to customize settings. This mod hasn’t been around since 2017, so check newer Evolv DNA Mods or All Mods.
Lavabox M Overview

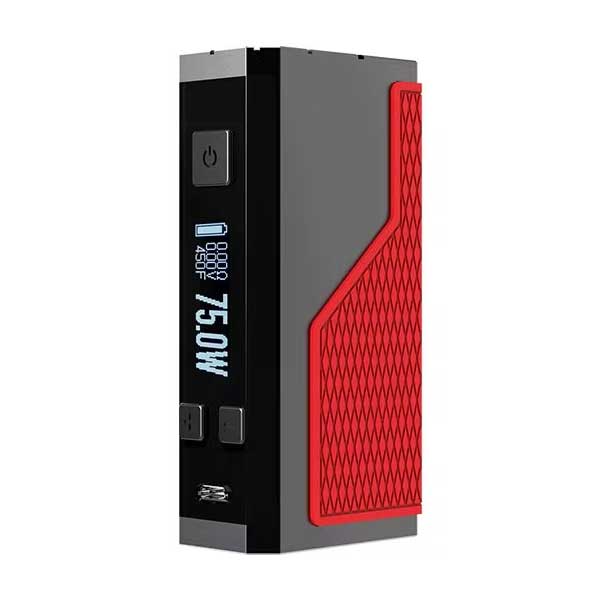

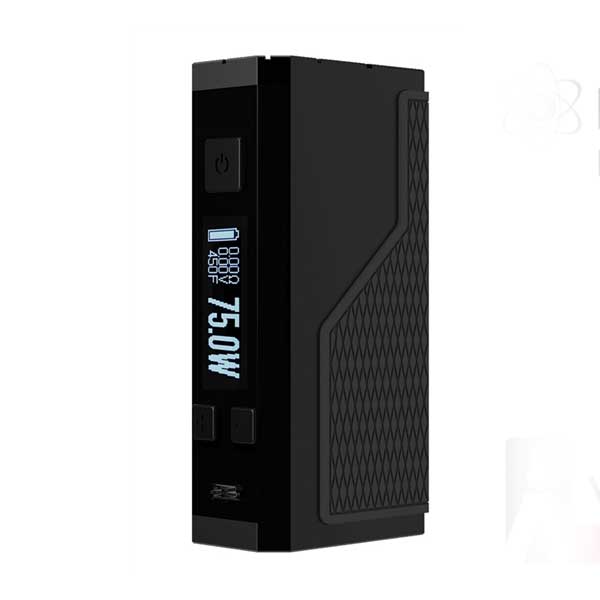

The Lavabox M is the mini version of Volcano’s regular Lavabox. It features a much smaller size, an easy battery panel, and complete customization via Escribe, thanks to an Evolv DNA 75 chip. It is available in black and blood red.
-
- Black
-
- Red
Compared to the larger Lavabox, the Mini DNA 75 is 20% smaller. It is made from durable 6061-billet aluminum to make it lightweight and durable. The design is very similar to the regular version with a durable black anodized finish, treated with an oxidized paint finish for amazing ergonomics and to prevent slippage. And there’s also an acrylic screen to enhance longevity and prevent dents or scratches.
The M mod also features a rubberized grip that is not screwed down but utilizes powerful magnets to stay firmly in place. This allows for effortless swapping of the single 18650 battery behind the grip that easily slides off. Charging the cell externally for battery longevity is always recommended, but you can also use the box mod’s onboard charging technology and plug it in.
The 510 connection bezel is at the top and features brass plating with a springloaded center pin. This allows for easy atomizer installs and maximum electrical conductivity. And, on the control face, there’s an OLED screen very similar to other DNA75 box mods and displays all the important info, including battery levels, voltage, wattage, mode, and much more.
The Lavabox M is built with an Evolv DNA 75 known in the industry for being a highly versatile chipset and providing accurate operation. As a result, the maximum output power is 75 watts, the maximum temperature comes in at 600 Fahrenheit, and atomizers can be fired down to 0.15Ω. Temperature control modes are available with nickel, titanium, and stainless steel heating elements, and there’s also a TCR mode to set the resistance coefficient for your particular coil head.
The portable box mod is also fully customizable by using Escribe desktop software, which allows 93 alternate vape options and future firmware upgrades to keep the device current. You can also input up to 8 different profiles with your favored settings. The DNA 75 chip also features many safety protections, such as patented wattage control, under/over voltage protection, over-puff time protection, overcharge/discharge protection, short circuit protection, and over-current protection.
Features & Specifications
- Dimensions: 26.6mm x 85mm x 43.8mm
- Made from high-quality aluminum alloy
- Stealth rubber-coated polypropylene plastic shell
- Acrylic glass screen
- Magnetic battery panel
- Bright OLED Display
- Powered by the DNA 75 Chipset from EVOLV
- Power range: 1W to 75W
- Temperature range: 200°F to 600°F or 93°C to 315°C
- Voltage output range: 0.2V to 6.2V
- Power mode resistance range: 0.25Ω to 3.0Ω
- Variable temperature resistance range: 0.15Ω to 1.0Ω
- Continuous current output: 30A
- Peak current output: 40A
- Temperature control with nickel, titanium & stainless steel
- TCR mode
- Customize with eScribe
- Preheat system in TC mode
- Firmware upgrades
- Powered by a single 18650
- USB 1A charging
- Eight memory slots
- Wide range of safety features
- Lock device
