The GeekVape Aegis Legend 5 relies on the long-standing Z Series (Zeus) coil ecosystem, specifically designed to pair with the Z Sub-Ohm Tank (2021 Edition) that comes standard in the kit. The GeekVape Aegis Legend 5 includes the updated Z XM mesh heads for increased longevity.

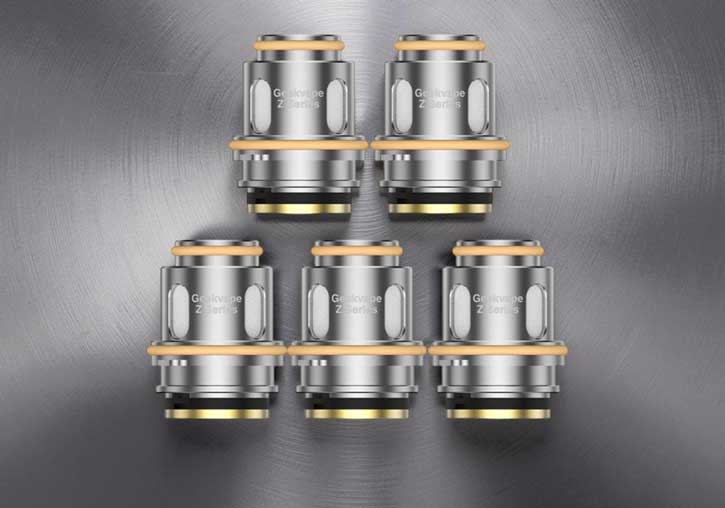

When you bought the kit, two Z Series coils were included: the Z0.15 XM (0.15Ω, 70W–85W) pre-installed for maximum vapor, and the Z0.4 XM (0.4Ω, 50W–60W) spare for extended flavor and life.
Official Replacement Coils (Found in the Box)
-
Z0.15 XM Coil (0.15Ω): Maximum Cloud Production, 5.5ml Capacity, 70W–85W.
-
Z0.4 XM Coil (0.4Ω): Balanced Flavor & Longevity, 5.5ml Capacity, 50W–60W.
-
Z0.2 Mesh Coil (0.2Ω): High-Performance Direct-Lung, 5.5ml Capacity, 70W–80W.
Cross-Brand & Series Compatibility
-
Z Series (Zeus) Mesh Coils: The Legend 5 is backward compatible with all original Zeus/Z mesh coils, including the 0.25Ω dual-coil and the original 0.4Ω non-XM variants.
-
Z Max (M Series) Coils: These coils are physically too wide for the Z Sub-Ohm Tank included with this kit and will not fit into the chimney assembly.
-
P Series Coils: These are designed for Aegis pod-mods and utilize a different diameter and O-ring configuration that is incompatible with the Legend 5 tank.
Avoid These Non-Compatible Coils
⚠️ Do not purchase these coil series as they are not compatible: Z Max (M Series) Coils and P Series Coils.
Official Coils – Technical Data
| Part Name | Resistance (ohm) | Best Juice | Wattage Range |
| Z0.15 XM Mesh | 0.15Ω | 70/30 or Max VG | 70W–85W |
| Z0.4 XM Mesh | 0.4Ω | 70/30 Freebase | 50W–60W |
| Z0.2 Mesh (Z2) | 0.2Ω | 70/30 Freebase | 70W–80W |
| Z0.25 Dual Mesh | 0.25Ω | 70/30 Freebase | 45W–57W |
