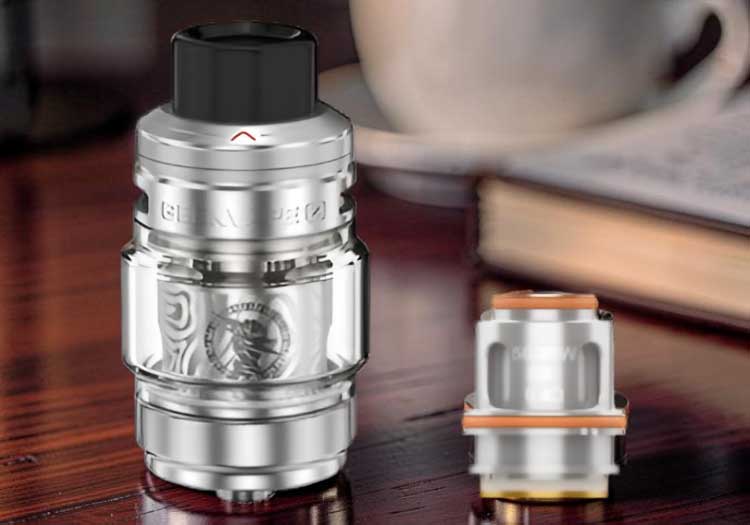

The GeekVape Z Subohm Tank 5 utilizes a push-to-fill top cap and a specialized press-fit coil system to maintain its legendary leak-proof status. This tank is designed with a top-to-bottom airflow path that requires the notched “Z Series” coil structure to align perfectly with the internal chimney for optimal vapor production. While the GeekVape Z Subohm Tank 5 is compatible with the entire Z-coil line, it is most effective when used with the upgraded XM “Boost” versions, which feature a denser mesh weave to handle the increased 5.5ml juice capacity with up to double the lifespan of standard coils.
Official Replacement Coil Heads
-
Z0.15 XM Coil (Boost Edition): Maximum vapor production and double the lifespan (up to 60ml of liquid), 5.5ml capacity support, 70W–85W Range.
-
Z0.2 XM Coil (Boost Edition): Balanced direct-lung performance with upgraded longevity, 5.5ml capacity support, 70W–80W Range.
-
Z0.4 XM Coil (Boost Edition): Improved flavor for restricted direct-lung hits and longer coil life, 5.5ml capacity support, 50W–60W Range.
-
Z0.15 Mesh Coil (Standard): High-wattage classic for massive vapor production, 5.5ml capacity support, 80W–90W Range.
-
Z0.2 Mesh Coil (Standard): Reliable direct-lung performance with rapid ramp-up, 5.5ml capacity support, 70W–80W Range.
-
Z0.4 Mesh Coil (Standard): Versatile flavor-focused mesh for a cooler RDL experience, 5.5ml capacity support, 50W–60W Range.
-
Z0.25 Dual Mesh Coil: Parallel mesh structure for precise temperature control, 5.5ml capacity support, 45W–57W Range.
What Other Coils Work
-
Z Fli & Z SE Tanks: The Z Subohm Tank 5 shares its entire coil ecosystem with the Z Fli and Z SE series, making all Z-branded mesh coils fully interchangeable across these platforms.
-
L200 (Aegis Legend 2) & Aegis Solo 3 Kits: If you are using the tank included in these kits, it utilizes the same Z-coil architecture found in the standalone Tank 5.
-
Z Max Tank: These are incompatible; the Z Max uses “M Series” coils which are significantly larger and will not fit the Z Subohm Tank 5.
Z Subohm Tank 5: Don’t Buy These Coils
⚠️”Supermesh” or “B Series” coils are not compatible. While they are also made by GeekVape, they are significantly smaller and will not seal in the Z-series housing.
Technical Performance & Recommended Juice Ratios
| Part Name | Resistance (ohm) | Best Juice | Wattage Range |
| Z0.15 XM Mesh | 0.15Ω | High VG (70/30+) | 70W–85W |
| Z0.2 XM Mesh | 0.20Ω | High VG (70/30) | 70W–80W |
| Z0.4 XM Mesh | 0.40Ω | 70/30 or 60/40 | 50W–60W |
| Z0.15 Standard | 0.15Ω | High VG (70/30+) | 80W–90W |
| Z0.2 Standard | 0.20Ω | High VG (70/30) | 70W–80W |
| Z0.4 Standard | 0.40Ω | 70/30 or 60/40 | 50W–60W |
| Z0.25 Dual Mesh | 0.25Ω | High VG (70/30) | 45W–57W |
