Smok Mag P3: 230W Waterproof Touchscreen Box Mod w/ 9mL TFV16 Mesh Tank
Here are cheap deals to purchase the Smok Mag P3, which is for sale as a Box Mod only or Kit with TFV16 tank. This device is sure to continue the popularity of its predecessors such as the Mag Grip and Mag. The new box mod features waterproof, dustproof/shockproof design, 230 watts of power, dual 18650 batteries, a 1.9″ touchscreen, fast firing, a full temperature control suite, TCR mode, passcode functionality, a delicate fire key, multiple protections and fast firing. The TFV16 tank in the kit has a 9mL juice capacity, mesh coils, easy refill system, maximum airflow, and a 16mm resin drip tip. It is on sale in black, green, silver, red and blue.
Update: Check out the more portable version of this setup: the Smok Mag P3 Mini.
Due to the Coronavirus, almost all USA merchants are out of stock for this popular item.

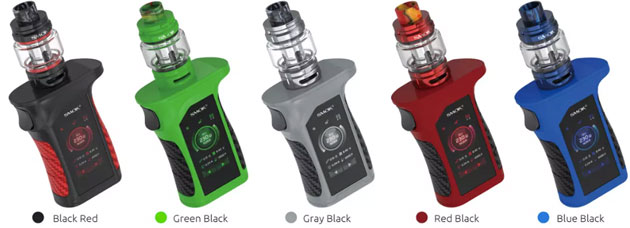

Five Color Options
The Smok Mag P3 is available in blue/black, red/black, gray/black, green/black and black/red.
Classic Mag Design
The Mag series of box mods consist of some of the most popular devices in the vape marketplace and the MAG P3 is no exception. Like its predecessors, the new device has many of the same distinguishing features such as the gun handle shaped appearance and the trigger-style firing mechanism. On the back of the P3, there is an exquisite carbon fiber panel that features high-level craftsmanship. The USB port is placed here and features an added protective plug shield to prevent water and dirt from entering the mod.
The Smok Mag P3 kit includes the mod and TFV16 tank. The mod has an exquisite color touchscreen, a trigger-style fire button, and a micro USB port. The tank can be disassembled and consists of a drip tip, top cap, glass tube with coil, bottom adjustable air slots and a base.
Trigger-Style Fire Key
Continuing the style of previous Mag mods, the P3 utilizes a small fire key, similar to a gun’s trigger. This mechanism is easily pressed for fast firing and its surface is smooth for ergonomics.
The Mag P3 box mod measures 91.6mm x 72.3mm x 36mm and weighs 251.5 grams. It has a maximum output of 230 watts and features 0.001-second lightning-fast firing. It can operate in power mode with 0.10ohm and above atomizers and in temperature mode with builds or tanks down to 0.05ohm. The TFV16 has a 9mL juice capacity, weighs 94 grams and measures 64.5mm x 32mm. It is made from stainless steel with a pyrex glass tank tube.
The Mag P3 is IP67 waterproof which indicates it can be submerged in up to 1 meter (about 3 feet) of water for up to 30 minutes. And, the unit is also dustproof and shockproof in case it is dropped.
Responsive Color Touchscreen
The MAG P3’s display screen has a brand new design. It measures 1.9 inches and is highly responsive to touch. And, the user interface offers a more concise and clearer way to view vape data.
Slide To Unlock
When device times out, it unlocks via an effortless process which involves sliding an arrow at the bottom of the touchscreen. This is a very similar process to the way one unlocks a smartphone. Please note that locking the fire key will also disable the touch function and you will have to unlock the unit again by sliding the arrow.
Variable Wattage Mode
In variable wattage or power mode, you can set several vaping effects, also known as taste modes. You may choose from soft, normal or hard and set the wattage between 1 watt and 230 watts.
Temperature Control Modes
Temperature control works with nickel, titanium and stainless steel heating elements and you may also operate the Mag P3 in TCR mode. Each temp mode has its own user interface in which you may also set your preferred wattage.
In the puff settings menu, you can put in your maximum number of puffs, track the number of puffs so far and clear puffs to start all over again.
System Settings Menus
In the settings menu, you can get general information about your mod, additional info on the chipset, change the theme, do a factory reset, choose a timeout interval, power off the mod and enter a passcode. To turn on the passcode function, simply touch “yes” on the password user interface and enter your secret 4 digit number.
Updated IQ-M Chipset
The Mag P3 is built with the latest IQ-M chipset which permits many new functions and the brand new touchscreen user interface. The 32-bit processor inside this chipboard means it fires almost instantaneously with up to 230 watts of power. Overall, this new Mag device is faster, safer and has more stable performance.
Dual 18650 Batteries
The Smok Mag P3 Mod works with dual 18650 batteries. To recharge the cells, there’s a USB port on the back which connects to any computer or other USB charging port. The onboard charging system operates with a 1.8 amp current, so the process won’t take too long. Or, you may top off the batteries by removing them from the battery bay which is accessed via a bottom hinged panel.
Multiple Safety Protections
The P3 is designed with a plethora of protections to limit possible risks. This means you are protected from short circuits, overheating, and accidental puffs. Plus, the device can recognize your atomizer’s resistance and keep track of the number of puffs you take.
Smok Mag P3 Kit w/ TFV16 Tank
If you purchase the full kit, you will receive the 9mL TFV16. This tank is built with a stainless steel body with pyrex glass tube that result in dimensions of 32mm x 64.5mm and a weight that comes in at 94 grams. At the top, you will see a brand new lock button which permits for swiveling the top cap to expose a filling slot. Airflow is adjustable via a bottom AFC ring. Thanks to a brand new design of the tube, the TFV16 can hold 9mL of e-liquid, one of the largest tank capacities ever. This means you may continue vaping, without refills for extended periods. Compared to other tanks by Smok, the base on the TFV16 has been raised to provide more space for the airflow for increased vapor.
The coils used with this tank are built mesh style wire for faster heating, better taste, massive vapor and consistent output. These heads have hexagon shaped holes to evenly heat e-liquid fast so that flavor production is maintained. There are four versions of the mesh coils. The pre-installed TFV16 Mesh has a 0.17ohm resistance and is most suitable at 120 watts for pure taste. The 0.12ohm dual Mesh coil has a better wicking inclination for extensive flavor and huge vapor. It has a range of 80 to 160 watts, but is suggested for use at 120 watts. The TFV16 Triple Mesh Coil features a 0.15ohm resistance. Its heating surface is wider for fast firing with huge vapor and flavor at a recommended 90 watts of power. Finally, there is the TFV16 conical mesh coil that is built with a 0.2ohm resistance heating element and results in a warm throat hit, fast heating and massive vapor with flavor. It fires in the range of 60 to 85 watts.
Smok Mag P3 Features & Specifications
Mag P3 Box Mod
- Dimensions: 91.6mm x 72.3mm x 36mm
- Weight: 251.5g
- Color options: blue/black, red/black, gray/black, green/black and black/red
- Carbon fiber panel
- Gun handle shaped design
- Compact, ergonomic & portable
- Exquisite fire key
- Trigger shaped like gun
- Smooth surface for ergonomics
- 1.9″ HD color touchscreen
- Updated interface
- Set theme color
- Touch responsive
- IP 67 Protection
- 510 threaded connection
- Updated IQ-M chipset
- 0.001s flash firing
- Works with a dual 18650 batteries
- Bottom hinged panel
- Micro USB charging port on back
- Supports micro USB firmware upgrades
- 1.8A/5V fast charging
- Power mode output: 1W to 230W
- Temperature range: 200°F to 600°F
- Operating modes: VW | TC (Ni200, SS, Ti) | TCR
- Three taste modes: soft, normal, hard
- Lowest atomizer resistance
- 0.05Ω in temperature modes
- 010Ω in power mode
- Output voltage range: 0.5V to 8.2V
- Input voltage range: 6.4V to 8.4V
- Standby current: <400uA
- Safety protections
- Intelligent atomizer recognition
- Short circuit protection
- Overheat protection
- 10s cutoff
- Puff monitoring system
- Low battery warning
- Dimensions: 32mm x 64.5mm
- Made from SS
- Color: matches the mod
- 9mL juice reservoir
- Effortless top fills
- 510 connection pin
- 16mm resin drip tip
- Leak-free gasket
- Big fill port
- Lock button to keep top cap in place
- Dual bottom adjustable air slots: 2.6mm x 14mm
- Mesh coils
- Pre-installed: TFV16 conical mesh coil
- Unique conical structure
- Kanthal material
- 0.2ohm resistance
- Warm throat hit
- Fast heating
- Massive vapor
- Amazing flavor
- 65W to 85W
- Included: TFV16 dual mesh coil
- 0.12ohm resistance
- Dual mesh holes
- Superior wicking
- Massive vapor
- Rich Flavor
- Best at 120W
- Optional: TFV16 mesh coil
- Stable heating
- Large surface
- Pure flavor
- Best at 120W
- Optional: TFV16 triple mesh coil
- 0.15ohm resistance
- Three mesh holes
- Widened heating surface
- Fast ramp-up response
- Massive vapor
- Superior flavor
- Best at 90 watts
- Pre-installed: TFV16 conical mesh coil
In The Box (USA Edition)
With purchase, you will get the following
- Mag P3 Mod
- 9mL TFV16
- 0.2ohm Conical Mesh Coil
- 0.12ohm Dual Mesh Coil
- Bulb Glass Tube
- Standard Glass Tube
- Protective Silicone Sleeve
- Micro USB Cable
- Spare Parts
