Check out this awesome price for the Asmodus Minikin V2 Box Mod. This 180-watt touchscreen mod is outdated, so check out newer box mods.
Minikin V2 Mod Overview
Asmodus is back with the upgraded version of the Minikin! It features a power increase to 180 watts and is built with a touch screen because of its new GX-180-HT chip. The device is available in black, white, or red.

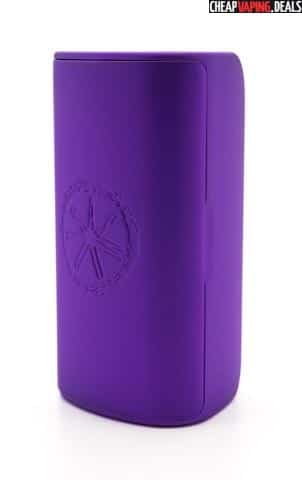

The Minikin V2 features a matte finish, fits comfortably in hand, and has 80mm x 41mm x 38mm measurements. At the top, there’s a stainless steel 510 connection with a springloaded center pin for flush installation of builds or tanks up to 25mm, without overhang. The 1 amp USB port for charging the two 18650 external batteries is on the bottom of the control face. The batteries can be easily swapped out via the convenient magnetic battery door on the back. The fire button looks similar to other Asmodus devices, features a low profile, and is clicky when pressed. On the bottom, 15 ventilation holes keep the device and batteries cool.
What’s exceptional about this mod is that the GX-180-HT chip and the new operating system allow the device to be controlled via the touchscreen. The OLED also organizes all the device statistics vertically in an easy-to-read way. On the screen, you can see the battery level for each cell, current coil resistance, voltage, puff counter, puff time, and current operating mode. The menu is easily accessed as if you were a smartphone’s screen. The screen is very responsive, and adjustments are made by touching each indicator. For example, press the wattage indicator to adjust or touch “power” to change mode.
The Minikin Version 2’s new chip allows for a higher power output of 180 watts and several firing modes, including power mode, curve mode, several stainless steel presets, titanium mode, TCR mode, and TFR mode. The TCR mode allows the user to put in the temperature coefficient of resistance, while putting the mod into TFR mode allows for setting the Temperature Factor of Resistivity and should be used with hybrid coil builds. Temperature is changeable from 212°F to 572°F, and the mod can fire down to 0.1Ω. The V2 mod will work well with virtually any other atomizer with these features.
The device also features new battery-saving technology. This Hyper-Energy Saving capability prolongs the mod’s battery life from 15 to 30 percent.
Features & Specifications
- Dimensions: 80mm x 41mm x 38mm
- Fingerprint-resistant matte finish
- Stainless steel/Spring-loaded connection
- Flush installation with atomizers of 25mm diameter or less
- Touch screen OLED
- USB charging
- USB upgrades
- Utilizes two external 18650 batteries
- Chipboard: GX-180-HT
- Operating modes: Power, Curve, Ni200, SS317, SS316, Ni200m, Ti, TFR & TCR
- Power range: 5W to 180W
- Temperature control maximum wattage: 120W
- Temperature control range: 212°F to 572°F or 100°C to 300°C
- Resistance range: 0.1Ω to 2.5Ω
- Maximum output voltage: 7.5V
- Highest output current: 45A
- Extend battery life by 15% to 30% with Hyper-Energy Saving Capability
