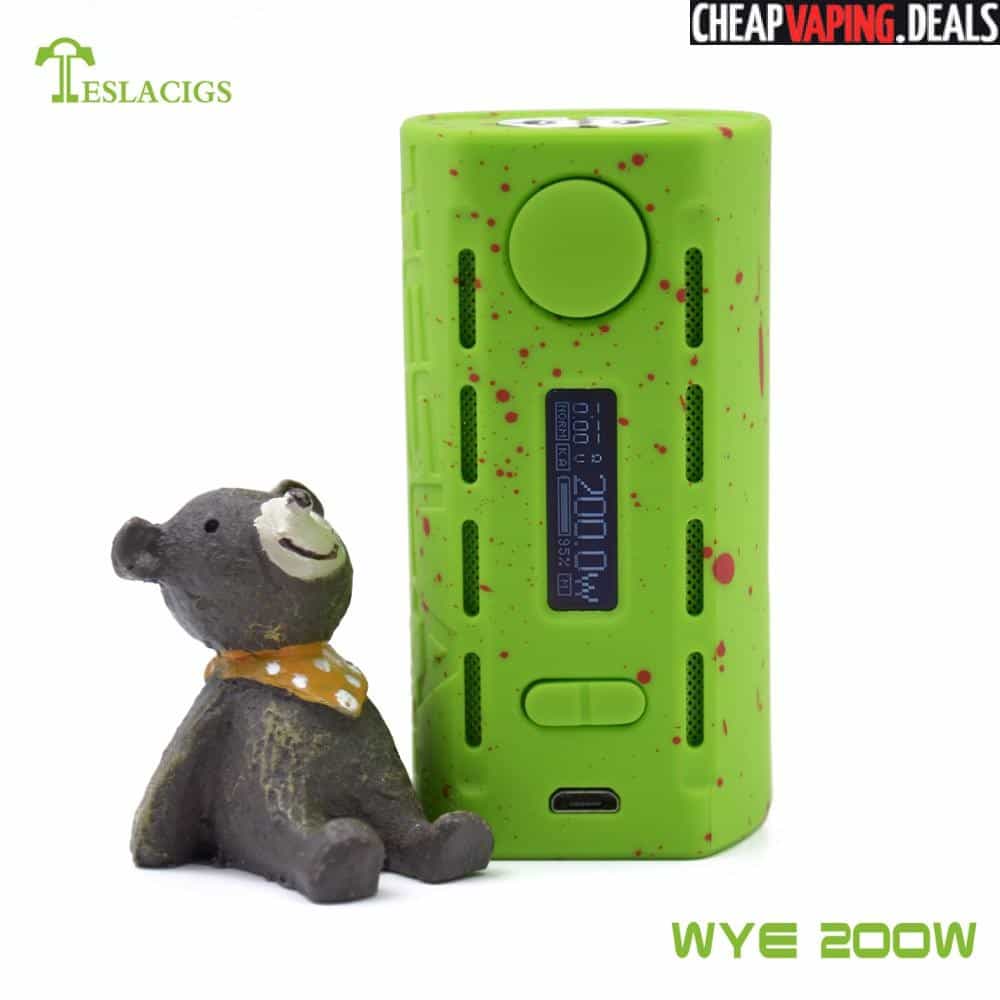

Tesla Wye Overview
The Wye is Tesla’s newest high-power box mod. It features 200 watts of output, dual 18650 cells, lightweight material, a colorful appearance, splatter effects, many temperature control options, and a wide range of safety features.
Because it is constructed from ABS & PC material, this mod is light, ergonomic, and highly damage-resistant. The mod weighs just 64.5g and measures only 82mm x 42mm x 39mm, making it easily transported. The design is also colorful and features a splatter design for a modern look. Available colors include green/red splatter, blue/red splatter, black/green splatter, white/black splatter, yellow/black splatter, and orange/black splatter.
Powering this mod are dual 18650 cells sold separately and should have a discharge current above 35 amps. The cells are accessed by effortless back panel removal and are chargeable via a micro USB port. This device has a pass-through charging system, so you can continue to vape while it’s plugged in.
The control face features a large round firing button, two adjustment buttons, a micro USB port, and an OLED, of which the dimensions are unknown. The menu is horizontally configured and includes data such as battery level, mode, voltage, wattage, temperature, resistance, etc.
On the technical level, the Wye box mod is very capable. Output modes include power, TCR, TC with nickel coils, TC with stainless steel, and TC with titanium coils. The device’s maximum output comes in at 200 watts, temperature control can reach 600 degrees Fahrenheit, and the lowest atomizer resistance is just 0.1ohm in power mode and 0.05ohm during variable temperature operation. Also, you may store your favorite settings in three alternate memory slots.
This mod also has several taste modes: normal, soft, hard, and user mode. The latter taste mode allows higher power output for specific time intervals while the mod fires. Finally, there are also six built-in protections, so you’ll never worry about safety when using this device.
Features & Specifications
- Measurements: 82mm x 42mm x 39mm
- Weight 64.5g
- Light, impact-resistant and portable
- Soft in hand due to ABS & PC material
- Splatter effect design
- Colors: green, blue, black, orange, white, yellow
- Springloaded 510 connector
- OLED screen with horizontal vape data
- Three memory slots
- Powered by dual 18650 batteries
- Easy battery access
- Micro USB 1.5A charging
- Pass-through vaping
- Output Modes: VW, TCR, TC-SS316, TC-Ni200, TC-Ti
- Taste modes: user, hard, soft, normal
- Power output range: 7W to 220W
- Power mode resistance range: 0.10Ω to 3.0Ω
- Temperature control resistance range: 0.05Ω to 1.0Ω
- Temperature control range: 100℃ to 315℃ or 200℉ to 600℉
- Maximum output voltage: 8.4V
- Maximum output current: 45A
- Overpuff protection
- Low voltage protection
- No atomizer warning
- Atomizer short protection
- Reverse polarity protection
- Over-temperature protection
